Double Stage Noodle Cutting Plastic Pelletizing Recycling Machine for Waste Plastic Film
Plastic Recycling Line for Waste Plastic Film Bag Pelletizing
Application of Plastic Recycling Line for Waste Plastic Film Pelletizing:
Applicable plastic materials: PP,HDPE,LDPE,LLDPE,TPV,ABS and PS,etc.
Material shapes:Film,bag and flake
Material types:Woven bag,printed LDPE film,film(rolls,loose,bundled),agricultural film waste,foamed plastics(EPS) and raffia.
Features of Plastic Recycling Line for Waste Plastic Film Pelletizing:
1) High efficiency and high performance
2) Material is cut,pre-dried,pre-heated,pre-homogenized and compacted in the shredding drum.
3) Many materials can be processed directly without need of the upstream pre-shredding,resulting in a dramatic reduction in operational costs.
4) Less power consumption cost per kilogram,high throughput,reduced floor space occupation and operator attendance
Note:Depending on material property,various downstream equipment are available
Main pelletizing recycling line capacity for reference:
| Machine Size |
Date of Compactor |
Data of Single Screw Extruder |
Throughput Rate
(kg/h)
|
|
Efficiency Volume
(Liter)
|
Motor Power
(KW)
|
Diameter of screw
(mm)
|
L/D |
Motor Power
(KW)
|
| PSD 80 |
300 |
37 |
80 |
36 |
45/55 |
160-220 |
| PSD 100 |
500 |
55 |
100 |
36 |
90/110 |
300-380 |
| PSD 120 |
800 |
90 |
120 |
36 |
132 |
450-480 |
| PSD 140 |
1000 |
110 |
140 |
36 |
160/185 |
500-650 |
| PSD 160 |
1200 |
132 |
160 |
34 |
220/250 |
800-1000 |
| PSD 180 |
1400 |
315 |
180 |
34 |
315 |
1000-1200 |

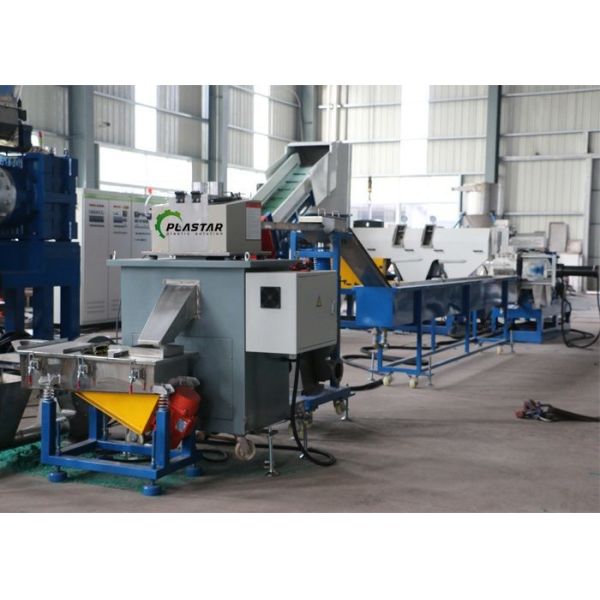

Machine pictures for reference:
