100 Kg/H PP Granules Making Machine

Brand Name : Purple Horn

Model Number : PL500

Certification : CE, ISO9001

Place of Origin : China

MOQ : 1 set

Price : Dollar 25000-85000$

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100sets/year

Delivery Time : 30-50 working days

Packaging Details : wood box+wood pallet+stretch film package

Raw material : PP battery cases

Processing capacity : 100-1500kg/h

Screw design : Single screw extruder

Cutting type : Noodle strip cutter

Machine type : Mother baby extruder or two stages extruder

Feeding type : Force feeding

Degassing device : Vacuum degassing

Screen changer : Without mesh type filter

Main motor brand : Siemens beide

Name : Plastic Recycling Granulator Machine

Contact Now

100-1200kg/h Waste Plastic PP Battery Cases Recycling Pelletizing Granulator Machine Line

This SJ series Plastic recycling granulator with two-stages is mainly applied to pelletize Crushed (rigid) materials, like PP battery cases, bottle flakes & agglomerated films, etc.
This type pelletizing line has special screw design, effective degassing and filter (Hydraulic screen changer) system, with stable output and long service life
Machines are highly-automatic, only need 2 workers for operating the whole pelletizing production line. One worker for controlling the Electric control panel, one for feeding materials and changing Hydraulic Screen Changer.
Our Recycling Pelletizing Line Advantages:
1) Big capacity, our recycling pelletizing line can reach up to 1500kg/h, which provide more choice for customer.
2) More optional filter system for you, now besides the traditional hydraulic screen changer with mesh, we can also provide new design NO MESH screen changer, which saves the cost for mesh and reduces the labor work, equiped with this new design no mesh screen changer, two workers can operate 3-5 pelletizing line.
3) Two stage extrusion system can remove most of the impurities and improve the final pellets quality.

Our recycling line machine model for reference:

Model Screw diameter(mm) Main motor power (kW) Second motor power(kW) Capacity
SJ130/SJ140 130&140 132 45 400-500kg/h
SJ150/SJ160 150&160 160 55 600-800k/h
SJ160/SJ180 160&180 220/250 75 800-1000kg/h
SJ180/SJ200 180&200 250/315 75 900-1100kg/h

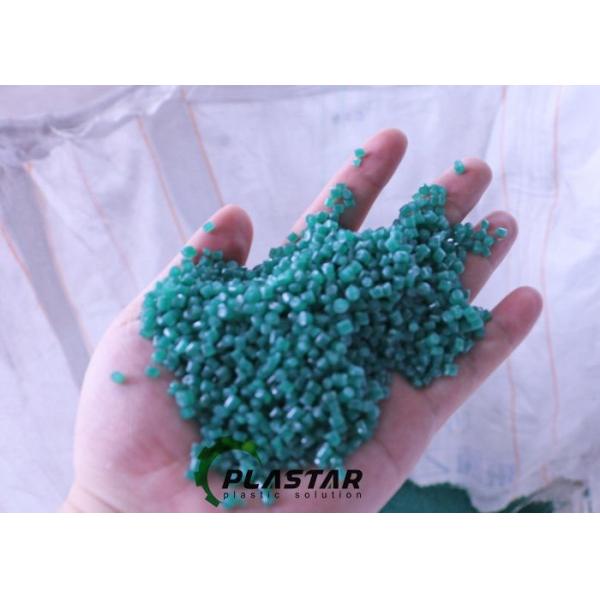

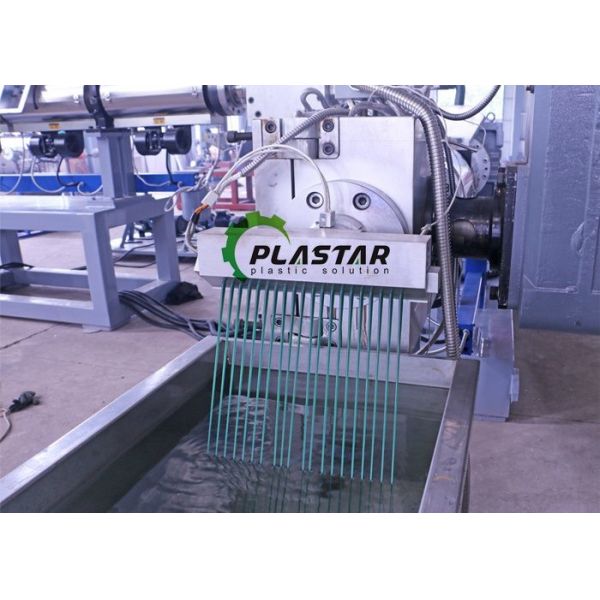

Machine pictures for reference:
100 Kg/H PP Granules Making Machine
100 Kg/H PP Granules Making Machine

100 Kg/H PP Granules Making Machine

100 Kg/H PP Granules Making Machine

100 Kg/H PP Granules Making Machine
